Productdetails:
|
Productstatus: | Voorraad | Type: | Deeltjes |
---|---|---|---|
Processortype: | Intel, Xeon zilver, goud. | Bewerker Hoofdfrequentie: | 2.1G |
Garantie: | 3 jaar | Geheugen: | 16GB/32G/64G |
Stroomvoorziening: | : 600W 800W 1100W | Ingebedde NIC: | : 2 x 1 GbE LOM |
Chassis: | : 1U 8*2.5 | CPU: | Zilver 4309Y |
Haven: | Tianjin Guangzhou |
Kenmerken | Technische specificaties |

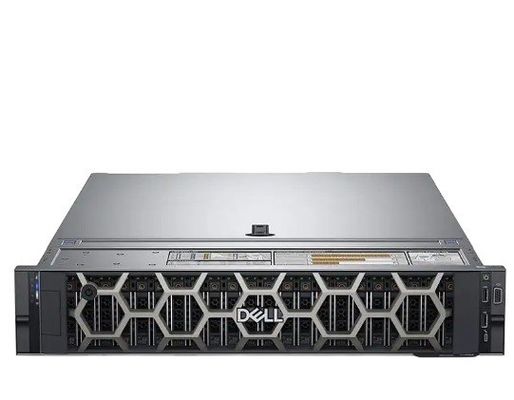

Model | DELLE EMC PowerEdge R750 |
Verwerker | Maximaal twee Intel Xeon-processors van de derde generatie, met maximaal 40 kernen per processor |
Geheugen | • 32 DDR4 DIMM-slots, ondersteunt RDIMM 2 TB max of LRDIMM 8 TB max, snelheden tot 3200 MT/s • Tot 16 Intel Persistent Memory 200-series (BPS) -slotten, maximaal 8 TB • Ondersteunt alleen geregistreerde ECC DDR4 DIMM's |
Storage controllers | • Interne controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot-geoptimaliseerd opslagsubsysteem (BOSS-S2): HW RAID 2 x M.2 SSD 240 GB of 480 GB • Externe PERC (RAID): PERC H840, HBA355E |
Vervoerruimtes | Voorruit: • Maximaal 12 x 3,5 inch SAS/SATA (HDD/SSD) max 192 TB • Maximaal 8 x 2,5 inch NVMe (SSD) max 122,88 TB • Tot 16 x 2,5 inch SAS/SATA/NVMe (HDD/SSD) max 245,76 TB • Maximaal 24 x 2,5 inch SAS/SATA/NVMe (HDD/SSD) max 368,84 TB Achterruimte: • Maximaal 2 x 2,5 inch SAS/SATA/NVMe (HDD/SSD) max 30,72 TB • Maximaal 4 x 2,5 inch SAS/SATA/NVMe (HDD/SSD) max 61,44 TB |
Stroomvoorzieningen | • 800 W Platinum AC/240 HVDC • 1100 W Titanium AC/240 HVDC • 1400 W Platinum AC/240 HVDC • 2400 W Platinum AC/240 HVDC |
Koelopties | Luchtkoeling, optioneel processor vloeistofkoeling |
Fans | • Standaard ventilator/Hoge prestatie SLVR ventilator/Hoge prestatie GOLD ventilator • Maximaal zes ventilatoren |

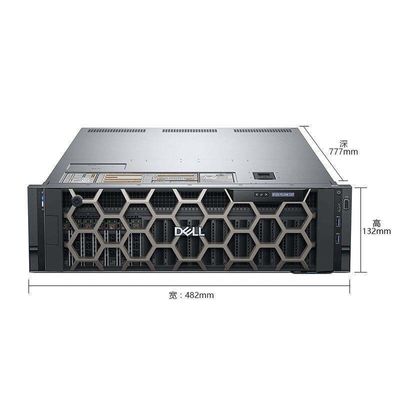

Afmetingen | • Hoogte 86,8 mm • Breedte ¥ 482 mm • Diepte 758,3 mm (29,85 inch) - zonder bezel 772.14 mm (30,39 inch) - met rand |
Vormfactor | 2U rackserver |
Ingebed beheer | • iDRAC9 • iDRAC-servicemodule • iDRAC Direct • Quick Sync 2 draadloze module |
Bezel | Optioneel LCD-kader of beveiligingskader |
OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist-plugin • OpenManage Update Manager-plugin |
Mobiliteit | OpenManage Mobile |
Integraties en verbindingen | OpenManage integraties • BMC Truesight • Microsoft System Center • Red Hat Ansible modules • VMware vCenter en vRealize Operations Manager OpenBeheer verbindingen • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP-editie • Micro Focus Operations Manager • Nagios Core • Nagios XI |
Veiligheid | • Cryptografisch gesigneerde firmware • Beveiligde boot • Beveiligd wissen • Silicon Root of Trust • System Lockdown (vereist iDRAC9 Enterprise of Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG gecertificeerd, TPM 2.0 China NationZ |
Ingebedde NIC | 2 x 1 GbE LOM |
Netwerkopties | 1 x OCP 3.0 (x8 PCIe-sporen) |
GPU-opties | tot en met twee dubbelbreedte-versnellers van 300 W of vier enkelbreedte-versnellers van 150 W of zes enkelbreedte-versnellers van 75 W |
Havens | Voorste havens • 1 x speciale iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Achterste poorten • 1 x USB 2.0 • 1 x serie (facultatief) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optioneel voor vloeistofkoeling) Inwendige havens • 1 x USB 3.0 |
PCIe | Tot 8 x PCIe Gen4 slots (tot 6 x16) met ondersteuning voor SNAP I/O-modules |
Besturingssysteem en hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server met Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi Voor specificaties en interoperabiliteitsgegevens |
OEM-gereed versie beschikbaar | Van rand tot BIOS tot verpakking, uw servers kunnen er uitzien en voelen alsof ze door u zijn ontworpen en gebouwd. bezoek |
